Data Processor Electronic Milk Processor

Description

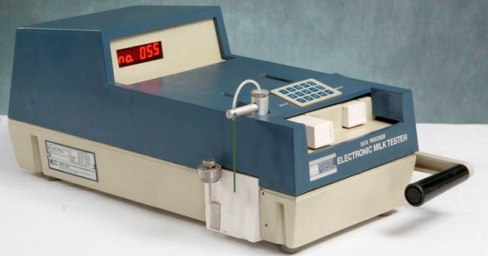

Data Processor Electronic Milk Tester (DPEMT) comprises of two main units, an Electronic Milk Tester and a Personal Computer. It measures the fat content of the milk. The membership code of individual members are entered manually by a keyboard. The weight can be entered either manually or captured automatically. If a Milk Weighing System is connected to the unit it gives the printout of the price of the milk brought in by each producer.

Send Enquiry
Working principle

Electronic   Milk   Tester   works   on   the  principle  of photometric  measurement of  light scattered by the fat globules  present  in  the  milk  sample. The  measuring procedure follows the conventional system of dilution, mixing, homogenization and photometric measurement.

Salient Features
  •   Auto zero facility
  •   Instant measurement & display of milk fat
  •   Instant calculation of amount payable
  •   Fast & economical
  •   Runs on mains & battery
  •   Operation with hexadecimal keyboard
  •   Facility to feed milk weight directly through key
         pad in absence of weighing unit machine

  •   Centralised testing & payment.
  •   Performs 120-150 samples per hour
  •   Built-in battery charger
  •   Close correlation to accepted standard methods
  •   Slip printout by 19 column numeric printer
  •   Suitable for interface with PC through RS232 port
  •   Suitable for interface with electronic weighing through parallel port
Technical Specifications
Performance Data
Installation Requirements
Measuring range   : 0-13% fat
Capacity  : 120-150 samples/hour
Accuracy (Sd) : 0.06% for 0-5% fat
0.10% for 5-8% fat
0.20% for 8-13% fat
Repeatability (Sd) : 0.03% for 0-5% fat
0.04% for 5-8% fat
0.08% for 8-13% fat
Sample volume : 0.5 ml/test
Diluent volume : 6.5 ml/test
Power Supply : AC: 220 / 24OV
(Max + 10%, Min - 15%)
DC: 12V, 6A
(Max 16 V; Min 10.5V)
A fully-charged 120 AH
battery will last for at least
10 hours of operation.
Ambient temperature : 5-450C
Dimensions (HxWxD) : 23x31x53 cm
Space requirement : 60x80 cm
Weight (without diluent) : 16 kg.
