ELECTRONIC WEIGHING SCALE
Description
Electronic Weighing Scales (EWSs) designed & marketed by REIL have been developed on the feedbacks of Indian dairy industry for transparent, accurate and instant quantitative analysis of milk at village milk collection centers and raw milk reception docks to meet tough rural/dairy requirements.
|
|
|
Salient Features
 Operation mode : Tare, Net or Gross Weight - Keyboard : Feather touch heavy duty Membrane switches for Tare, Zero, Reset, Gross/Net
- Display : Bright seven segment LED display
- Zeroing : Internally auto zero tracking and external via keyboard
|
- Tare : Keyboard operated, subtractive up to 100%
- Enclosure : Moisture, splash and rust proof housing for electronic unit
- Data output : RS 232
- Indication : Overload indication
|
|
| Technical
Specifications |

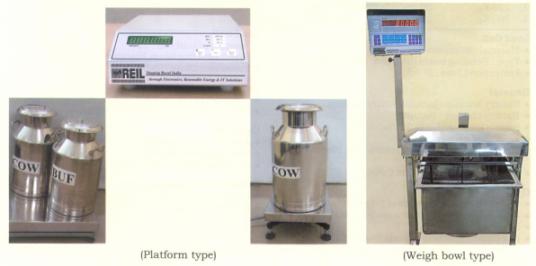

- Electronic Weighing Scale
(Platform type)
Performance Data
|
- Electronic Weighing Scale
(Weigh bowl type)
Installation Requirements
|
| S.No. |
Capacity (Max.) |
Scale Interval |
Platform Size (mm) LxW |
| 1. |
50 Kg. |
10 gm. |
400 x 400 |
| 2. |
120 Kg. |
20 gm. |
600 x 600 |
| 3. |
200 Kg. |
20 gm. |
600 x 600 |
Load Cell
• Material: Stainless steel
• Type: Bending beam resistive strain gauge
• Protection class: IP-65
General
• Battery backup: In-built battery backup
• Battery charger: In-built
• Impact loading: Upto 300%
• Kg. to Ltr. conversion
• Mechanical over load protector to protect load cell
• SS-304 Polished Platform Cover
Optional
• SS Pole with SS sturdy base for mounting display.
• Remote display with three meter cable.
• Back rail.
• Hot dipped galvanized basic frame of the platform made-up of cold rolled steel box section for long lasting rust prevention.
Installation Requirements
• Power supply: 230V AC ±10%, 1ф, 50Hz
• Ambient temperature: -10°C to +50°C
|
|
Performance Data
| S.No. |
Capacity (Max.) |
Scale Interval |
| 1. |
550 Kg. |
100 gm. |
Load Cell
• Number of load cell: 02
• Type: Bending beam resistive strain gauge
• Protection class: IP-65
General
• Calibration: Auto calibration
• Impact loading: Upto 400%
Optional
• Auto drainage of milk
• Wall mounted display
• Stainless steel weigh bowl
Installation Requirements
• Power supply: 230V AC ±10%, 1ф, 50Hz
• Ambient temperature: -10°C to +50°C
|
|
|
The customized Electronic Weighing requirements such as Check weigher, Tanker/Truck weigher and weighing system for Mobile Milk vending/booth are also taken up.
|
EWSs supplied by REIL are confirming to "Standards of Weight & Measure General Rules 1987 as amended up to date". The EWSs are of Class-III accuracy.
|
