ANIMAL IDENTIFICATION SYSTEM

Description

Radio Frequency Identification System (RFID) consists of three major components i.e. RF Reader, RFID Transponder (Tag) & Antenna System. The Reader generates eletromagnetic signals and transmitted through in built Antenna which interact with Transponder (Tag), if it lies in its proximity.

Little Egret
Send Enquiry

Tags are used depending upon the application and the range required. Tags are passive devices and get powered from electro-magnetic signal generated from RFID Reader Application Program Interface (API) and customer specific application software is prepared for the Animal Database Management. The system provides instant information related to milk yield, health condition, feeding pattern, quantity of a particular animal or an animal farm.

Little Egret Little Egret Little Egret Little Egret
Features

   State-of-the-art system used for identification of animal.

  Help preserving various breeds of animals.

  Reliable and tamper proof system for animal insurance sector.

  Online database relating to milk production, feed quantity, health
      condition etc. available for all animals. Helps in prevention and
      early detection of animal disease.

  Animal registration at site / veterinary health centre at village.

  RF Reader is capable to store the data for 500 animals at a time.

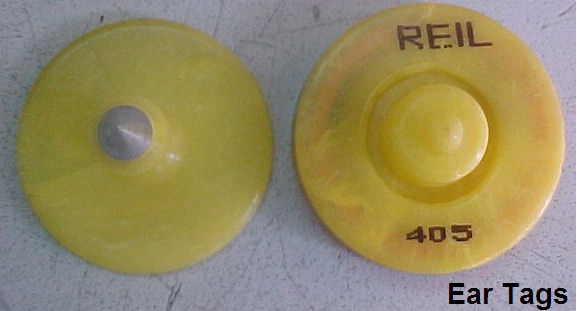

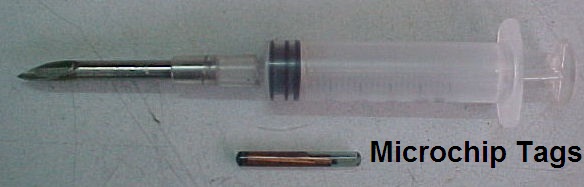

  Easily insertable Tags in the skin of animal.

  No side effect of the tags on the body of animal.

  Classification and data base preparation for different animals is possible.

  Instant animal counting & their genetic characteristic storage.

Technical Specifications
TRANSPONDER TAG):
Compliance
: ISO 11784 and ISO 11785
Frequency
: 125 kHz
Range
: Up to 30 cm.
Temperature
: -25°C TO +50°C
Power
: Passive Device

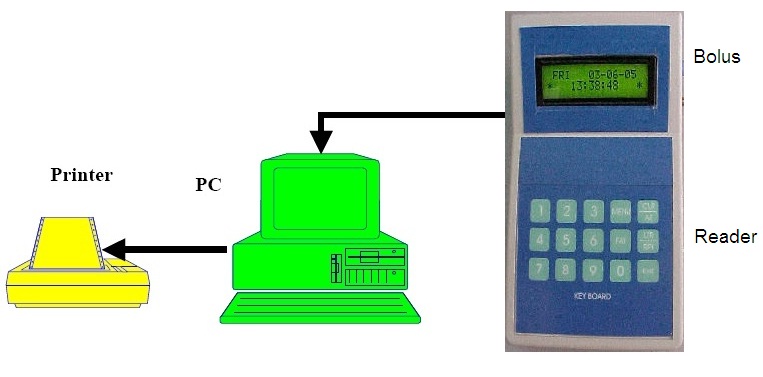

PORTABLE READER:
Frequency
: 125 kHz
Display
: 2 Lines by 16 character LCD
Battery
: sealed Maintenance free battery, 6V,10H
RS232 Port
: COM port for PC interface
Charging
: From Mains /Solar Photovoltaic Modules
Temperature
: -5°C TO +50°C
COMPUTER INSTALLATION REQUIREMENT:
Power Supply
: AC 220-240 V
Current Rating
: 5 Amp.
Printer
: 80 Column Dot Matrix
Download product brochure
